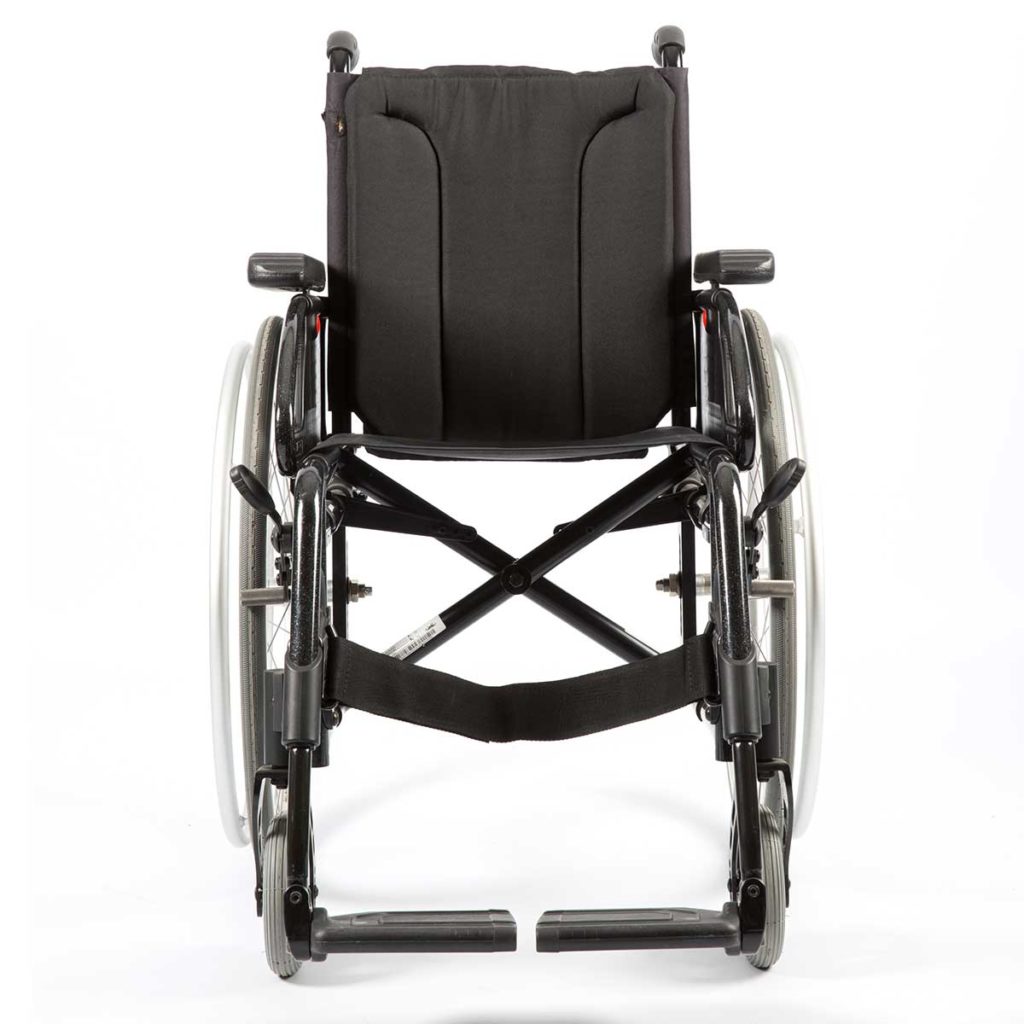

AVANTI

Optimal handling and modern design.

AVANTI is an active wheelchair that is used throughout the day, allowing absolute independence in your movement. It is extremely efficient, thanks to its versatility as its multiple configurations make it the ultimate wheelchair for a wide range of activities. Thanks to the variety of options and settings in the order form, AVANTI meets all of your personal needs.

The following codes are included:

351-352-353, 30, 393, 325-154-481-900-162-161-645, 651, 494-493, 692, 486-902-696, 434/575, 621-622, 410-413, 100, 93, 805, 287, 4919-212-185-216.

SKU: 1.736 Category: Custom made wheelchairs Brand: MEYRA

Κωδικός ΕΟΠΥΥ: 00054

Description

Discover the possibilities of the Avanti

Advantages of the AVANTI

Made of aerospace aluminum 7020.
Folding frame (cross).
Available in 13 different colors.
The color of the fork and the “vario block” can differ for even greater customization.
Available in three frame sizes: short / medium / long
Minimum wheelchair weight depending on the frame: 8 Kg / 8.5 Kg / 9 Kg.
Maximum user weight depending on the frame: 75 Kg / 135 Kg / 160 Kg.
Compatible with a variety of accessories from the “ACTIVE” series of MEYRA.

Avanti is a custom made wheelchair.

Manufactured based on the dimensions of your body and customized according to your personal needs and taste!

The options in the order form are divided into the following categories:

00: Frame Size.
01: Seat width.
02: Seat depth.
03: Front height.
04: Seat belt/ Cusion.
05: Rear height.
06: Center of gravity adjustment.
07: Rear wheel.
08: Wheel rim and rim options.
09: Rear tyre.
10: Brake type.
11: Backrest height.
12: Backrest type and accessories (Headrest / push handles).
13: Sideguards and armrests.
14: Footrest type.
15: Footplate and straps.
16: Frame color / finish color.
17: Color / type of upholstery.
18: Other Accessories (eg anti tip, spoke guards).

Avanti and Avanti Pro are the most affordable wheelchairs of the "active" Meyra series.

The most significant difference between the two models is that the Avanti has removable footrest which offer versatility, while the Avanti Pro has fixed footrests that make it more sturdy.

Specifications

	351 ΚΟΝΤΟΣ ΣΚΕΛΕΤΟΣ	652 ΜΕΣΑΙΟΣ ΣΚΕΛΕΤΟΣ	653 ΜΑΚΡΥΣ ΣΚΕΛΕΤΟΣ
ΠΛΑΤΟΣ ΚΑΘΙΣΜΑΤΟΣ (mm)	300-360	360-580	360-580
ΣΥΝΟΛΙΚΟ ΠΛΑΤΟΣ (mm)	Πλάτος καθίσματος +200mm (+180mm με πλαϊνά κωδ. 100)
ΠΛΑΤΟΣ ΔΙΠΛΩΜΕΝΟ (mm)	280
ΒΑΘΟΣ ΚΑΘΙΣΜΑΤΟΣ (mm)	330-380	350-460	480-530
ΥΨΟΣ ΚΑΘΙΣΜΑΤΟΣ ΕΜΠΡΟΣ (mm)	430-500	440-560	440-560
ΥΨΟΣ ΚΑΘΙΣΜΑΤΟΣ ΠΙΣΩ (mm)	400-470	390-520	390-520
ΣΥΝΟΛΙΚΟ ΥΨΟΣ (mm)	830	920	920
ΥΨΟΣ ΠΛΑΤΗΣ (mm)	340-400	380-500	380-500
ΥΨΟΣ ΥΠΟΒΡΑΧΙΟΝΙΩΝ (mm)	165-240	200-290	200-290
ΜΗΚΟΣ ΜΕ / ΧΩΡΙΣ ΥΠΟΠΟΔΙΟ (mm)	880/660	1040/770	1120/850
ΕΠΙΤΡΕΠΟΜΕΝΟ ΒΑΡΟΣ ΧΡΗΣΤΗ (Kg)	75	135	160
ΒΑΡΟΣ ΑΜΑΞΙΔΙΟΥ (Kg)	12	13	14
ΜΕΓΙΣΤΟ ΕΠΙΤΡΕΠΟΜΕΝΟ ΣΥΝΟΛΙΚΟ ΒΑΡΟΣ (Kg)	87	148	174
ΒΑΡΟΣ ΑΜΑΞΙΔΙΟΥ ΓΙΑ ΜΕΤΑΦΟΡΑ (Kg)	8	8.5	9
ΠΙΣΩ ΤΡΟΧΟΙ	610mm (24"), 560mm (22")
ΕΜΠΡΟΣ ΤΡΟΧΟΙ	4", 5", 5,5", 7"
