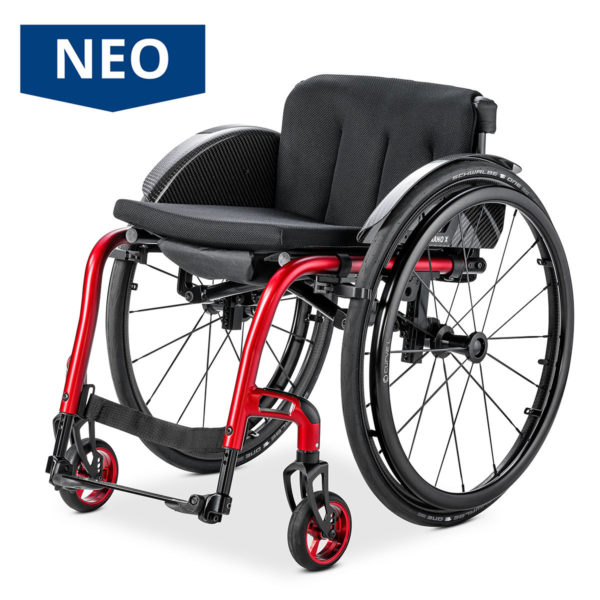

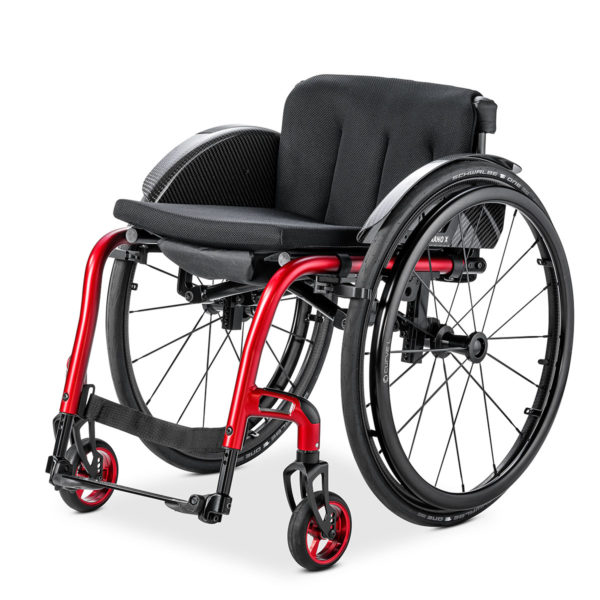

NANO X
The best folding wheelchair.
The new NANO X (model 2021) is the top folding wheelchair with the appearance and features of a rigid wheelchair.
It folds easily for transport but at the same time provides optimal driving behavior and control for an active user.
In addition, NANO X provides all the necessary settings so that you can configure it perfectly for your needs!
More for ΝΑΝΟ Χ
- Manufactured from aerospace grade aluminium 7020.
- Folding frame combined with open design.
- Adjustable gravity center and seat inclination.
- Discreet and at the same time durable double cross with safety clasps.
- Available in 17 different colors and with plenty of options to personalize it.
The most durable folding wheelchair.
NANO X combines the best features of a folding wheelchair with the advantages of the rigid frame at an innovative, modern design.
Configured to match perfectly with your body and your personal tastes.
Adjustable centre of gravity and seat inclination.
Find the perfect sitting posture according to your body type and your preferences. Become a more active user with improved wheelchair control.
NANO X is a custom made wheelchair.
Manufactured based on the dimensions of your body and customized according to your personal needs and taste!
The options on the order form are divided into the following categories:
00: Frame Size.
01: Seat width.
02: Seat depth.
03: Front height.
04: Seat cushion.
05: Rear height.
06: Rear wheels.
07: Rim selection.
08: Rear tire.
09: Brake type.
10: Backrest height.
11: Backrest accessories.
12: Sideguards and armrests.
13: Footrest type.
14: Frame color
15: Color / type of fabric.
16: Other Accessories (eg Anti-dandruff, radiation shield, belt).
Specifications
| ΠΛΑΤΟΣ ΚΑΘΙΣΜΑΤΟΣ (mm) | 320 / 340 / 360 / 380 / 400 / 420 / 440 / 460 / 480 |
| ΣΥΝΟΛΙΚΟ ΠΛΑΤΟΣ (mm) | 480 / 500 / 520 / 540 / 560 / 580 / 600 / 620 / 640 / 660 / 680 |
| ΒΑΘΟΣ ΚΑΘΙΣΜΑΤΟΣ (mm) | 380 / 400 / 420 / 440 / 460 / 480 / 500 |
| ΥΨΟΣ ΚΑΘΙΣΜΑΤΟΣ ΕΜΠΡΟΣ (mm) | 450 έως 530 |
| ΥΨΟΣ ΚΑΘΙΣΜΑΤΟΣ ΠΙΣΩ (mm) | 360 έως 510 |
| ΣΥΝΟΛΙΚΟ ΥΨΟΣ (mm) | Ύψος καθίσματος πίσω + Ύψος πλάτης |
| ΥΨΟΣ ΠΛΑΤΗΣ (mm) | από 250 έως 450 (+-15mm) |
| ΜΗΚΟΣ ΑΜΑΞΙΔΙΟΥ (mm) | 720 έως 920 * |
| ΕΠΙΤΡΕΠΟΜΕΝΟ ΒΑΡΟΣ ΧΡΗΣΤΗ (Kg) | 130 |
| ΒΑΡΟΣ ΑΜΑΞΙΔΙΟΥ (Kg) | από 9 |
| ΜΕΓΙΣΤΟ ΕΠΙΤΡΕΠΟΜΕΝΟ ΣΥΝΟΛΙΚΟ ΒΑΡΟΣ (Kg) | από 145 |
| ΒΑΡΟΣ ΑΜΑΞΙΔΙΟΥ ΓΙΑ ΜΕΤΑΦΟΡΑ (Kg) | 6,5 |
| ΠΙΣΩ ΤΡΟΧΟΙ | 24" / 25" / 26" |
| ΕΜΠΡΟΣ ΤΡΟΧΟΙ | 4" / 5" / 5,5" |
| ΚΛΙΣΗ CAMBER | 0° ή 3° |
| * εξαρτάται από το μήκος του σκελετού, την διάσταση του πίσω τροχού και την ρύθμιση του κέντρου βάρους | |
Colour options
Downloads
Brochure
English order form
German order form (with prices)
User manual
CE
Meet us…
Need more information? Do you want to make an appointment for a test drive or see the wheelchair up close?
Fill out the contact form below and a Wheel representative will contact you.
Of course you are not committed to anything and there is no obligation for you!
